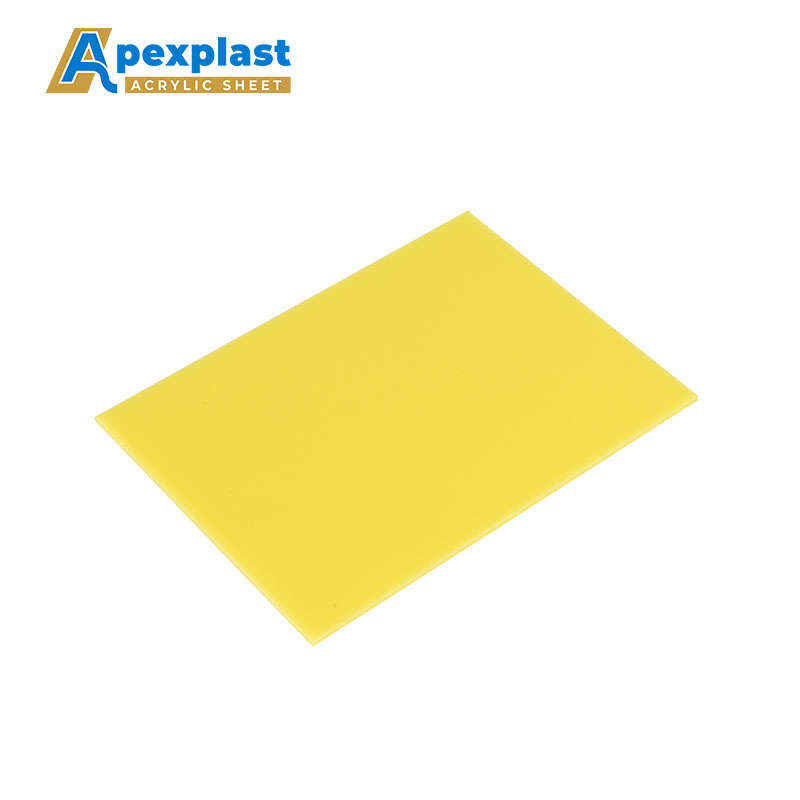

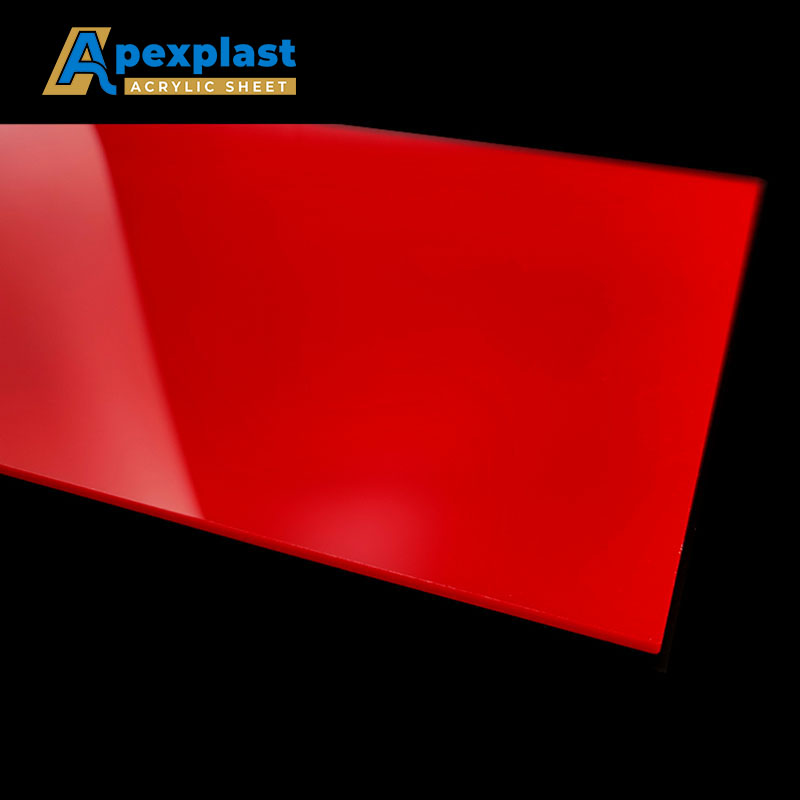

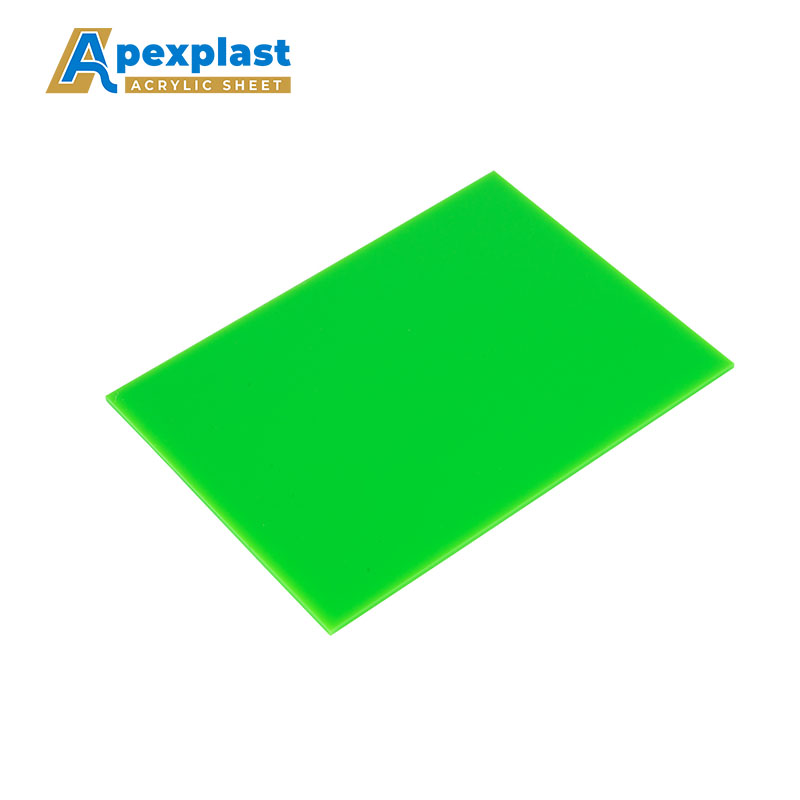

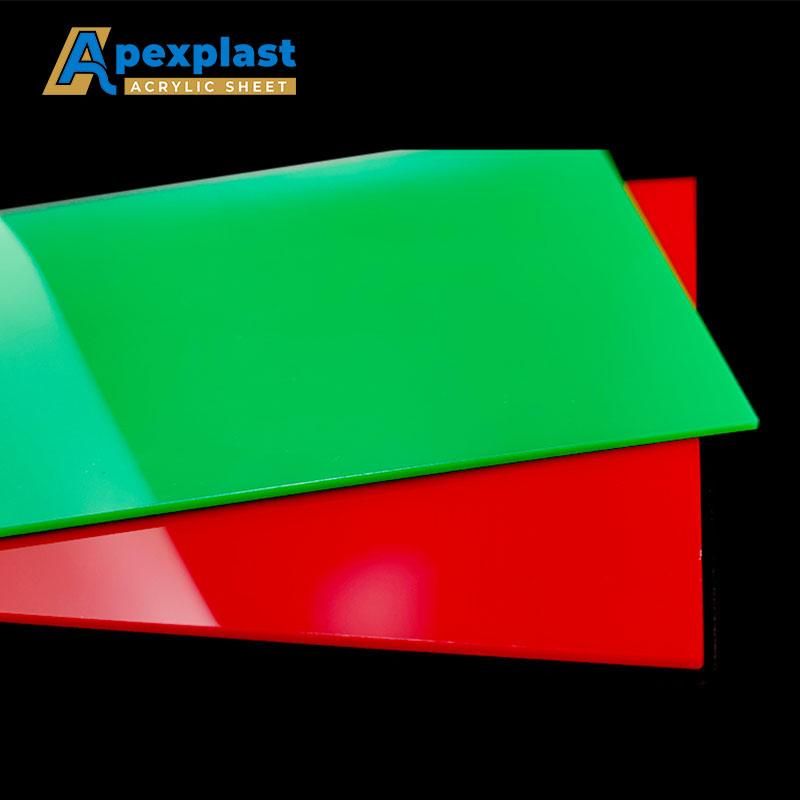

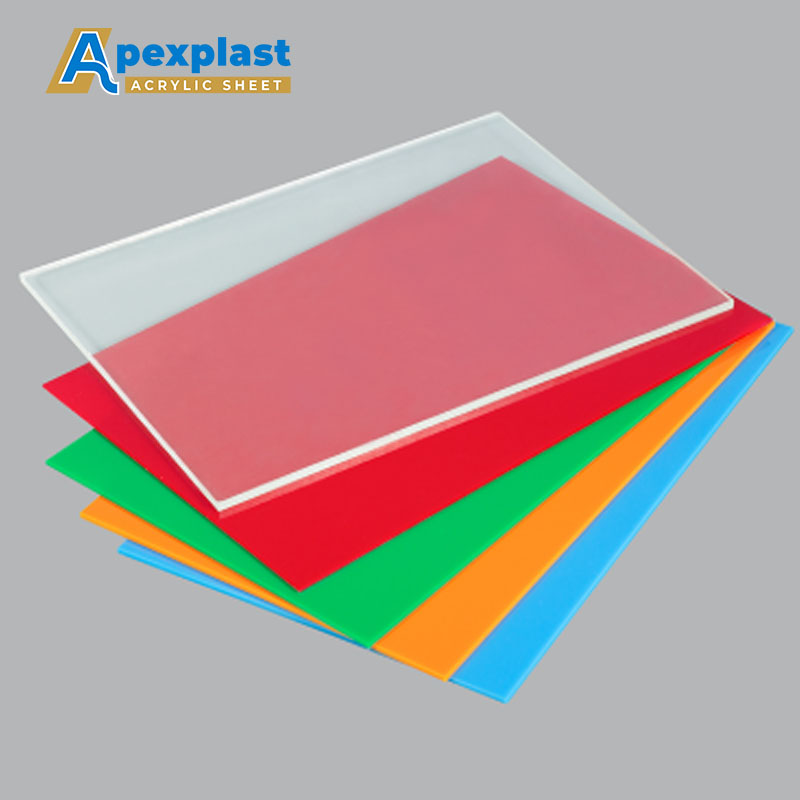

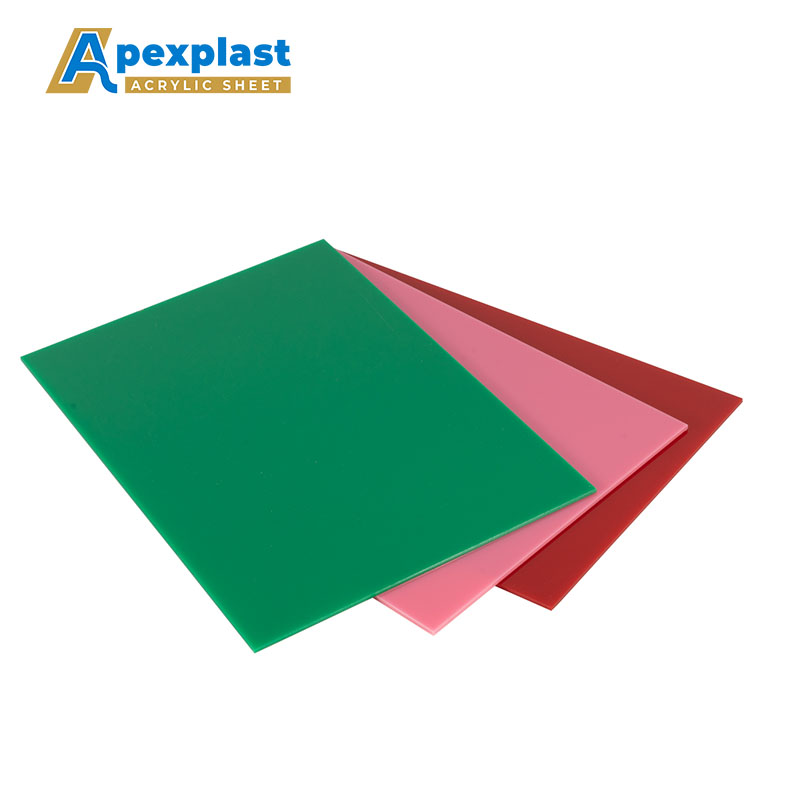

Cast transparent color acrylic sheet board
Cast transparent color acrylic sheet board
·Density: 1.2g/cm
·Color:Transparent/clear, colored for choose
·Packing: Per sheet: Both sides covered with kraft paper to protect surface
·Surface: High hardness and glossy
Cast transparent color acrylic sheet board
Acrylic has high transparency, with a light transmittance of 92%, and is known as "plastic crystal". It also has excellent weather resistance, especially for outdoor use, ranking first among other plastics. It also has good surface hardness and gloss, and has great processing plasticity, and can be made into various required shapes and products.
| Width*Length(mm) | Thickness(mm) | Density | Color |
| 1250*1850,1250*2450,1050*2050,2050*3050 etc... | 1-200 | 1.2 | As requirement |
In order to offer a good price, we need your kindly help to confirm us about the following details as the reference
1. Color (transparent, semitransparent, white, black, red, blue, green and as per customer's requirement)
2. Thickness (2mm~30mm)
3. Size (1220x2440mm standard)
4. Quantity to check the delivery time
|
|
|
| Types | Items | Units | Value | Test method |
Mechanical Characteristics | Elasticity Modulus | kg/cm2 | 28000 | ASTM D-638 |
| Curving Intensity | kg/cm2 | 1260 | ASTM D-790 | |
| The Curving elasiticity rate | kg/cm2 | 28000-35000 | ASTM D-790 | |
| Compressing Intensity | kg/cm2 | 1260 | ASTM D-695 | |
| Lzod(Notched) | kg/cm2 | 0.4 | ASTM D-256 | |
| Rockwell Hardness | ft-lbs/in | M-100 | ASTM D-785 | |
Heat Characteristics | Moulding temperature | ℃ | 150 | |
| Transfigurating temperature | ℃ | 100 | ASTM D-648 | |
| Intenerating point | ℃ | 112 | ASTM D-1525 | |
| Line expanding modulus | cm/cm/℃ | 54*10-6 | ASTM D-696 | |
| Self extinguishing temperature | cm/cm/℃ | 64*10-6 | Cenco-Fitch | |
| Specific heat | ℃ | 4436 | ASTM D-1929 | |
| Flection rate | ℃ | 0.35 | (BTU/lboF) | |
Optical Characteristics | Flection rate | 1.49 | ASTM D-542 | |
| Light transmission rate | % | 92 | ASTM D-1003 | |
Others | Water absorbing rate | 24hrs | 0.3 | |
| Smell | none | |||
| Gout | none |
