different thickness pmma plexiglass transparent extruded clear cast acrylic sheet

PRODUCTS > Extruded Acrylic sheet > different thickness pmma plexiglass transparent extruded clear cast acrylic sheet

different thickness pmma plexiglass transparent extruded clear cast acrylic sheet

·Application:Advertising Sheet, Decoration, Engraving etc
·Density: 1.2g/cm
·Color:Transparent/clear, colored for choose

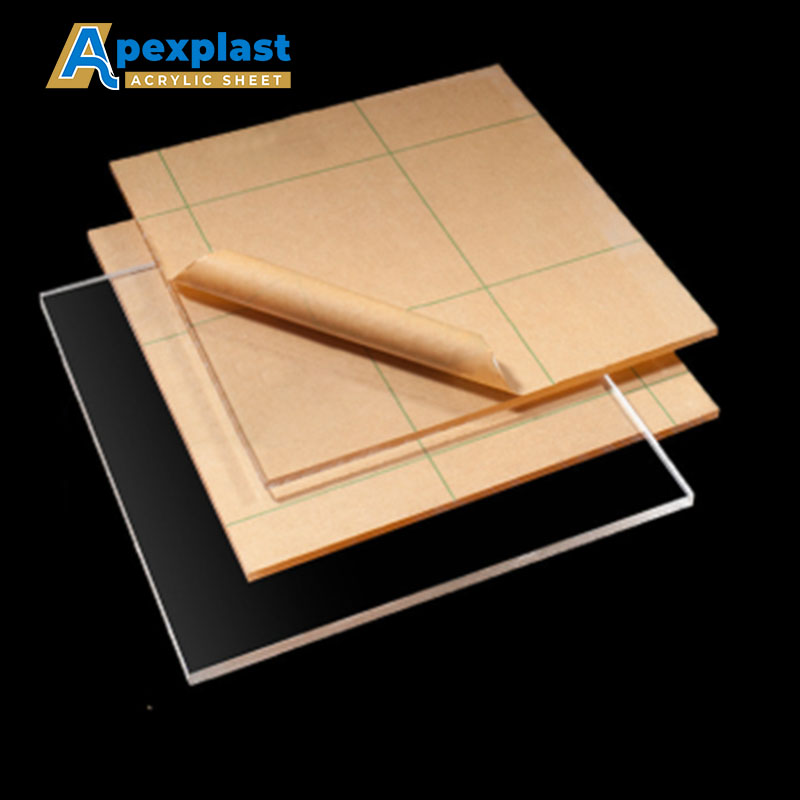

·Packing: Per sheet: Both sides covered with kraft paper to protect surface
·Surface: High hardness and glossy
On sale: $1.60
Price: $2.40
shared:
Transparent/clear, colored for choose
1250*1850,1250*2450,1050*2050,2050*3050 etc
1.2g/cm3
Different thickness pmma plexiglass transparent extruded clear cast acrylic sheet

The production process of acrylic extruded boards is to first melt the acrylic raw materials and then extrud them at high temperature through mechanical equipment.


Width*Length(mm)Thickness(mm)DensityColor
1250*1850,1250*2450,1050*2050,2050*3050 etc...1-2001.2As requirement

In order to offer a good price, we need your kindly help to confirm us about the following details as the reference

1. Color (transparent, semitransparent, white, black, red, blue, green and as per customer's requirement)

2. Thickness (2mm~30mm)

3. Size (1220x2440mm standard)

4. Quantity to check the delivery time


TypesItemsUnitsValueTest method





Mechanical Characteristics

Elasticity Moduluskg/cm228000ASTM D-638
Curving Intensitykg/cm21260ASTM D-790
The Curving elasiticity ratekg/cm228000-35000ASTM D-790
Compressing Intensitykg/cm21260ASTM D-695
Lzod(Notched)kg/cm20.4ASTM D-256
Rockwell Hardnessft-lbs/inM-100ASTM D-785





Heat Characteristics

Moulding temperature150
Transfigurating temperature100ASTM D-648
Intenerating point112ASTM D-1525
Line expanding moduluscm/cm/54*10-6ASTM D-696
Self extinguishing temperaturecm/cm/64*10-6Cenco-Fitch
Specific heat4436ASTM D-1929
Flection rate0.35(BTU/lboF)


Optical Characteristics

Flection rate
1.49ASTM D-542
Light transmission rate%92ASTM D-1003



Others

Water absorbing rate24hrs0.3
Smell
none
Gout
none
